Specification
Material:Anti-flammable PC
Voltage:AC 230V,50/60Hz
Max. Current Load: 3A/16A
Temperature Accuracy: ±1℃
Temperature Setting: 0-80℃
Item Size: 86 * 86 *mm/ 3.4 * 3.4in
Power Consumption:＜1W

Temperature Sensor:NTC

User Operation

1. Power on/off: Press  key to turn on/off the thermostat

2. Press  key to switch between manual and automatic modes.

3. In automatic mode, press  key or  key to enter automatic temporary mode, which only runs for several minutes.

4. Press key to enter the clock setting, and press keys to adjust the value of each parameter.

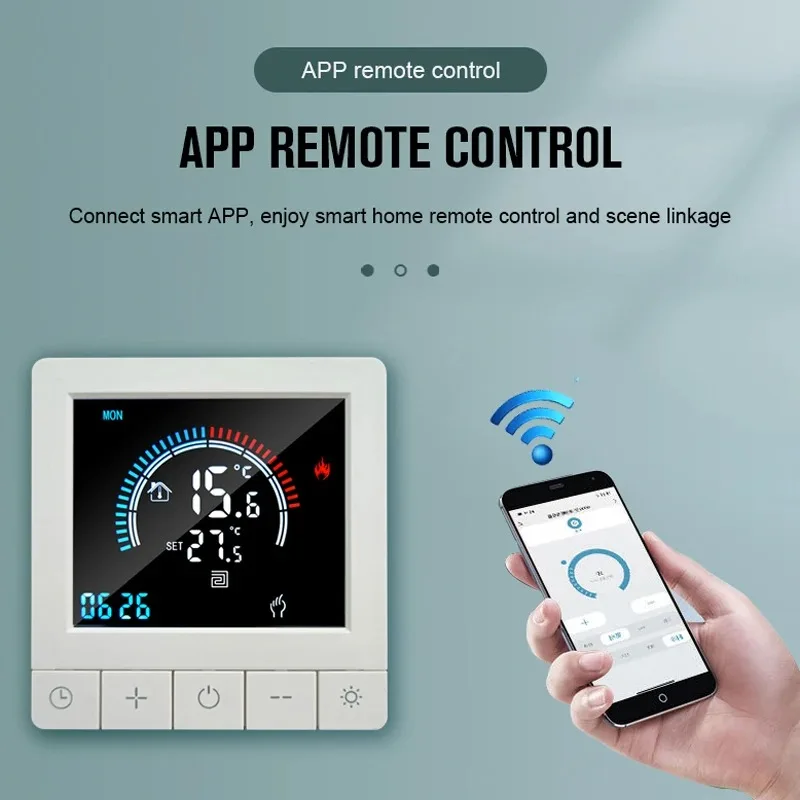

Note: WiFI model will automatically obtain the Internet time.

5. The child lock is off by default at the factory. If you want to use this function, you need to enter the advanced option to enable the child         lock function. Long press button for 5 seconds to temporarily turn off it.

Period Programming Instructions

In the power-off state, long press key M+ key, then press M key to switch options, press key or key to adjust the parameters, and press key to exit with saving.

Advanced Option Settings

In the power-off state, press  key and key simultaneously for 5 seconds to enter advanced option setting.

Press  key to enter the next option, presskey and key to adjust, and press key to exit advanced option.
